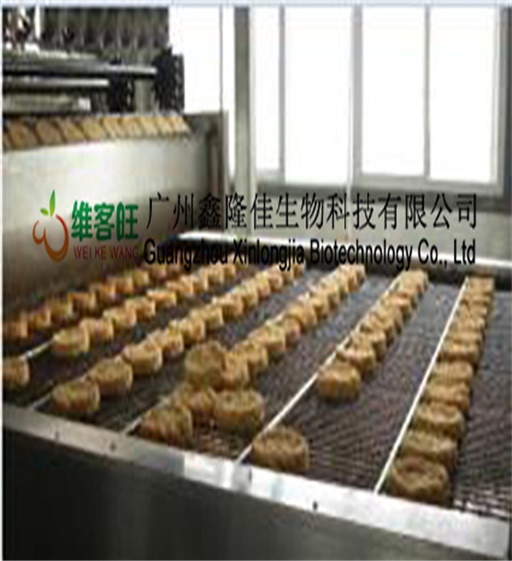

The process of fried instant noodle production line mainly includes: salt water mixing metering system, kneading, wet noodle conveying, curing, pressing, steaming, cutting, frying, finishing, air cooling, conveying and packaging. The shape of the noodle cake can be square or round, and supports customization. The whole set of equipment will be produced by an automatic assembly line, such as automatic noodle mixing, cutting, conveying, steaming, and automatic frying. The output can reach 20,000 packs in 8 hours, 70g/block The whole noodle machine is in the form of steam, so a steam boiler is required. The part of the contact surface is made of stainless steel and food-grade conveyor belt, and the pressing roller is made of alloy cast steel, which is very hard.
Product introduction | Serial number | Machine name | Picture | machine describe | | 1 | Saline mixing tank
|
| Advantages: equipped with helical gear reducer and famous brand motor Power: 1.5kw Stirrer speed: 280 rpm, with flap type water level gauge Material: The tank body and stirring shaft are made of SUS304 stainless steel Production content: all kinds of instant noodles
| | 2 | Saline measuring tank |
|
Measuring tank volume:100 liters Measuring error: ≤0.5 liters Add water time:≤2 minutes Material :the tank is made of SUS304 stainless steel,and the pipe fittings,valves and pipelines are of sanitary grade SUS304,equipped with water pump Power: 0.75kw Overall dimension: φ270x2100mm | 3
|
Single shaft dough mixer
|
|
Volume:50kg/time (amount of flour) Structure features : single shaft,horizontal motor Power:5.5kw Material: The parts in contact with the food such as the barrel body, stick and the lower hopper are made of SUS304 stainless steel; the transmission parts, shafts and machine bases are made of high-quality carbon steel; The way the flour is placed: straight plate to open the door, manual Water adding method: Manual spray pipe spray Dimensions (mm): 1500 (L) × 600 (W) × 850 (H) Equipment weight: about 250kg | 4 | Wet noodle conveyor |
|
Length:6 m Material: food grade conveyor belt, stainless steel frame Power:0.37kw | | 5
| Disc cooked machine
|
|
Power:1.1kw Material:Material: The box and the blades are made of SUS304 stainless steel. Rack stainless steel SUS201 The transmission pulley is cast iron with V-belt, worm gear and worm reducer Dimensions: φ1000x300mm Equipment weight: about 350kg | | 6 | Noodle press machine |
|
Material:The pressure roller is made of chilled alloy cast steel, the shield is stainless steel, the bracket, the machine and the transmission are carbon steel and copper scrapers; equipped with a lamination device, the conveyor belt is food grade, and the nylon guard plate has 6 sets of pressure rollers, the width of the rollers is 200mm, and the material is alloy casting. Steel φ126x2, φ168x1, φ126x3 Power:5.5kw frequency conversion and speed regulation Size: 2800 (L) ×600 (W) ×1200 (H) mm | | 7 | 3-layer steam machine |
|
Power:1.1kw frequency conversion and speed regulation Including: thermal insulation steam box, mesh conveyor chain, three-layer air intake, adjustable steam volume, valve, pressure gauge, temperature gauge, exhaust hood, moisture exhaust pipe, etc. Materials: The tank body, nozzle, conveyor net chain, guide rail, steam exhaust hood, steam exhaust pipe, chain, track, and water support plate are made of SUS304 stainless steel; the frame body of the double-layer thermal insulation door is made of SUN201 stainless steel square tube. Steamer temperature: 95-100℃ Steaming box length: about 7m; three-layer net chain structure. 4 glass windows Equipment weight: about 1500kg
| | 8 | Aspect cutting and sorting machine |
|
Power: 0.75kw (variable frequency conversion and speed regulation) Size:3800*1780*1600mm Equipment weight:approximately 1600kg Material:The sub-racks and the outer protective door are made of stainless steel, the main frame and the transmission device are made of high-quality carbon steel. The cutter is a tool steel blade and is chrome-plated. The sub-arrays are made of food-grade silicone material. Centralized oil supply, curved folding knife, curved transmission, chain mesh | | 9 | Oil Storage Tank |
|
Material: Made of carbon steel Capacity: 1500+500L Features: including brackets and ladders, with self-controlled heating system, oil does not solidify, oil level automatic control | | 10 | finishing machine |
| Length: 1.5 meters long Material: lever, support plate, sliding plate, outer cover are all stainless steel, transmission parts are carbon steel Equipment weight: about 150kg | | 11 | Air Cooler |
|
length 5 meters Material: Conveyor belt, strut stainless steel 304 Chain, frame, transmission: carbon steel Outer door guard stainless steel fan 0.37kw 5 pcs Equipment weight: about 1500kg | | 12 | Conveyor
|
|
Including: Frame, conveyor belt, drive Material: The frame, transmission parts, machine feet, etc. are made of carbon steel, and the body is made of stainless steel. Food grade conveyor belt Length: 2.5 meters Power: 0.37 kw, mechanical stepless speed regulation Equipment weight: about 80kg
| | 13 | Electrical control cabinet |
|
Voltage: 380V Frequency: 50HZ Frequency conversion speed regulation, full line PLC control, with touch screen, domestic famous brand Low-voltage part of chint electrical appliances, excluding wires
| | 14 | Accessories
|
|
2 face knives (square); 2 copper bizi contactors; 1 button switch; 2 steamer mesh belts; 1 meter noodle press conveyor belt; 1 row of silicone sheets; 2 cutter blades; 1 tool: 1 set (combination)
|
|
